Two-speed column polishing machine, with electric ascent and descent. System with pneumatic piston and pressure regulation for marble and granite polishing, or for brushing or roto-bushhammering with a plate

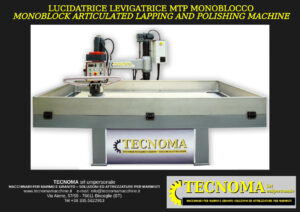

MANUAL POLISHER MTP MONOBLOCK
MANUAL POLISHER MTP MONOBLOCK
- extremely thick cast iron base to guarantee necessary rigidity and resistance to potential vibrations
- extremely thick hardened and tempered steel column to guarantee precision movement, protected by bellows cover
- rear arm connected to the column on one side and to the other arm, by way of a hinge, on the other side; it is raised or lowered by way of a lifting screw coupled to a safety nut attached to it; the sliding column can also be adjusted
- front arm with function of supporting the spindle and its transmission
- manual pump located on front-left side to lubricate sleeve and spindle
Below are the technical characteristics of the MTP Monobloc model:
| Spindle motor power | 4.5 / 5.5 KW |
| Spindle revolutions | 500/1000 rpm |
| Spindle lifting cylinder stroke | 100 mm |
| Lift stroke | 300 mm |
| Work capacity | 400x3000x1400x2500 mm |
| Maximum radius | 2000 mm |
| Machine weight | About 1400 Kg |
